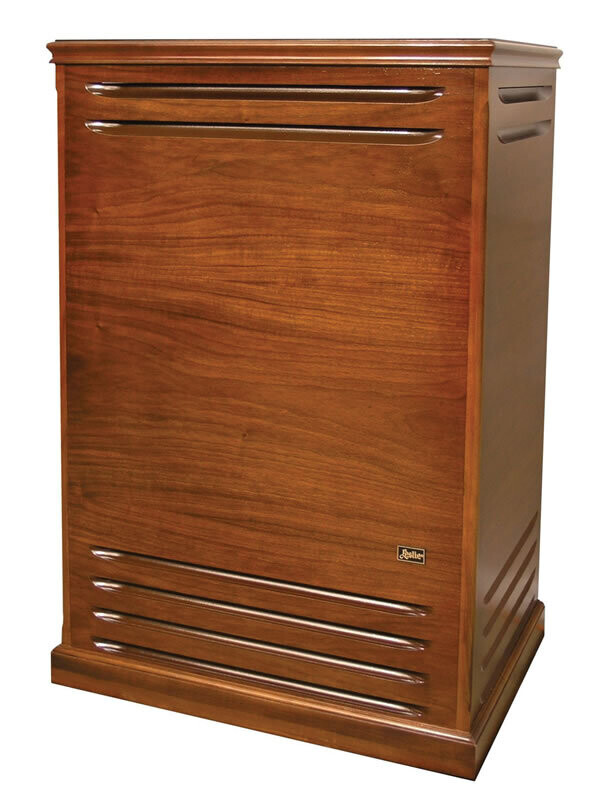

Leslie Speaker 122XB

The Classic Leslie Speaker, made to Don Leslie’s “Original Recipe”, same as it has been since 1941. This two-speed speaker uses a traditional tube amplifier with a heavy duty driver in the horn and special design 15” woofer for the bass rotor. Connections are made via the 11-pin plug found on all modern Hammonds, and certain clones. For older Hammond models, adapter kits are available. A few concessions to modern times have been added, such as a ¼” “guitar cord” input, and a jack for a footswitch; thus eliminating the need for a bulky cable and “preamp box”.

Specifications

• Single-Channel Input Two-speed horn and bass rotor

Amplifier

• Handcrafted 40-Watt RMS vacuum tube amplifier

Speakers

• Massive 15" woofer, High power horn driver

Inputs

• Model 122XB - 11-pin Leslie connector, ¼” line input jack and foot switch jack

Controls

• Master volume (122A, 147A, 122XB), Power On/Off switch (122XB only)

Dimensions

• 29 1/4"(W) x 20 5/8"(D) x 41 5/8"(H)

Weight

• 149 lbs.
