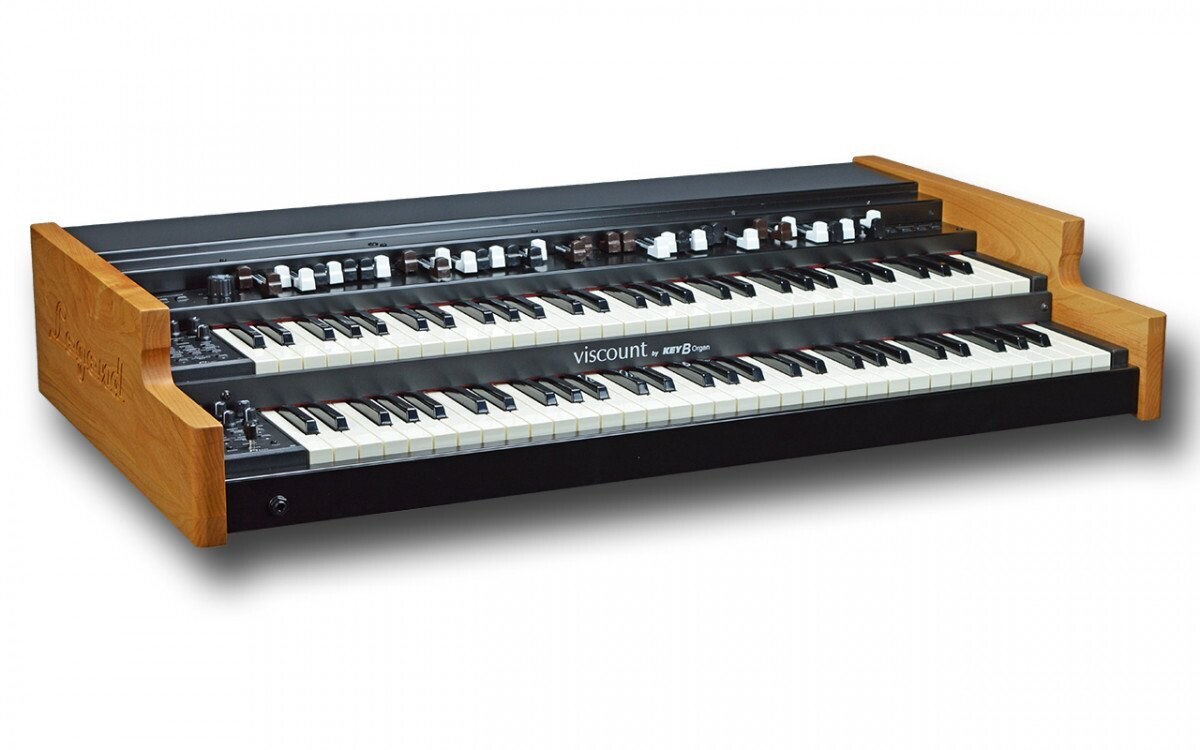

Viscount Legend Live Organ

The Legend Live organ is able to perfectly recreate the sound of tonewheels organs offering you again the “vintage feeling”. With four sets of drawbars and double keyboards, this organ stands apart from all the rest in advanced technology sound, feel and much more affordable pricing. Every aspect of a tonewheel keyboard and sound is so perfectly duplicated that players all over the world are saying “it’s the best ever!

• Viscount Legend Live by Keyb provides you the perfect portable organ solution.
• Premium waterfall keyboards
• The latest in tone wheel organ modeling technology
• Easy to play
• State of the art rotary and amp simulation
• Two full sets of drawbars per manual
• Harmonic percussion and key click
• Effects volume vibrato and chorus
• Upper and lower realtime controls
• Half moon switch
• 11-pins Leslie® connector
• Fx send/retrun
• USB power charger

  JdF SIGNATURE EDITION

  Available also in a JdF (Joey DeFrancesco) Signature Edition that includes the following features:
• Black satin colour with Joey’s signature.
• Organ clones with sound model and related effects (Vibrato, Chorus, Percussion and Rotary Simulator) personally tuned by Joey.
• The three models were cloned from three tonewheel organs from Joey’s personal collection. These organs were used to record many of his albums and for his live perfomances.


  DESIGN

  PERFECT ARRANGEMENT The new VISCOUNT Legend organ designed and engineered in Italy in cooperation with KeyB, provides incredible expressive capabilities in an easy-to-use interface in a perfect portable solution. The Legend uses the latest in tonewheel modelling technology allowing exigent musicians to play without compromise the fabulous organ sound. EASY TO PLAY When you sit down at the Legend, all you have to do is turn it on and play. Everything you need and are familiar with, on a classic tonewheel organ, is there right where it belongs. No confusing menus or LCD screens full of features that you most likely don’t or won’t use. After all, it’s an organ.

  INTERFACE

  FULL SET OF DRAWBARS If you have been playing a classic tonewheel organ, then you will feel at home with the Legend Live. It has two full sets of 9 drawbars for the upper keyboard, two full sets of 9 drawbars for the lower keyboard and 2 pedal drawbars. HARMONIC PERCUSSION Located right where they belong are the switches to control the On/Off, Soft/Normal volume, Fast /Slow decay, 2nd and 3rd harmonic. VIBRATO AND CHORUS Easy control of Vibrato and Chorus. UPPER / LOWER REALTIME CONTROLS Legend Upper Manual Realtime Controls include: Volume; Reverb; Drive; Keyclick; Fine Tuning; Crosstalk; Tone Controls; Pedals Sustain; Percussion (Decay, Volume). Legend Lower Manual Realtime Controls include: Reverb (Hall/Spring); Drive (Classic, Rock); Tonewheel Model (’30, ’50, ’70); Transpose; Rotary (Classic/Rock); Pedals (To Lower). VOLUME (SOFT/NORMAL) VIBRATO AND CHORUS You can use vibrato/chorus independently for the upper and lower manuals or together. Use the familiar rotary control to select all three Vibrato and Chorus settings.

  KEYBOARD

  WATERFALL KEYBOARDS Along with the best sound and being easy to play, the Legend Live has two heavy-duty 61-note keyboards with the feel of an organ, not a synthesizer or cheap portable keyboard. If you play pedals, then you can purchase the optional 25 full-sized console pedals. The Legend Live pedals are heavy-duty and are same radius as the classic tonewheel organs, which makes playing the pedals feel right.

  SOUND GENERATION

  LATEST IN MODELING TECHNOLOGY The new VISCOUNT by KeyB Legend Live organ, designed in cooperation with NEWTONE, uses the innovative TMT (Tonewheel Modeling Technology) able to perfectly clone the classic tonewheel organ. The result is a natural sound that can’t be obtained by traditional sampling. Legend reproduces also important characteristics of a tonewheel organ including cross talk, tonewheels flutter, electric hum and octave tapers. Moreover there is also an accurate Rotary Simulation. Maybe you don’t have one or it’s not convenient to take a rotary speaker with you. Don’t worry! The new Legend Simulation is incredibly realistic. It’s so good you’ll have to look twice to see where the rotors are, this is because of the TMT engine.

  CONNECTIONS

  AUDIO CONNECTIONS AUDIO IN/OUT: Legend Live can be connected to either a keyboard amplifier via outputs left / right. Possibly, via 11 pin cinnection, it can be connected to a Rotary Speacker. AUDIO PEDALS OUTPUT: Legend Live is the only one with a pedals output dedicated to the sound of the pedalboard, without getting into the channel of Vibrato/Chorus and Rotary Emulation. FX SEND/ RETURN: Be able to connect your favorite external effect. ANALOG IN: It allows you to use the effects of an external instrument. INPUT GAIN: It allows you to control the volume of an external instrument. PEDAL CONTROLS EXP: Expression Pedals ROTARY: To change the speed of the Rotary. HOLD: Hold control both for Legend Live and for an external intruments . MIDI FULL MIDI: Out 1, Out 2, In, Thru, Pedalboard In. USB USB TO HOST: useful to connect a computer for MIDI and software update. USB POWER CHARGE: You can power supply SmartPhone / Tablet.

  KEYBOARD

  Keyboard	- Upper Keyboard - 61 notes waterfall - Lower Keyboard - 61 notes waterfall

  SOUND GENERATOR

  Technology	TMT (Tonewheel Modeling Technology)
  Transposer	-6 +5 semitones
  Fine Tuning	+/- ¼ tone
  Crosstalk	Unique crosstalk created for each tonewheel model
  Keyclick	A new revolutionary state of the art design
  Tonewheel model	'30, '50, '70, Alt. 1, Alt. 2, Alt. 3
  String Bass	On/Off, Decay Control
  Harmonic Percussion	On/Off, Volume Soft/Normal, Decay Fast/Slow, Harmonic Percussion 2nd / 3rd Percussion Level and Percussion Decay Controls

  EFFECTS

  Vibrato / Chorus	Upper On/Off, Lower & Pedal On/Off, Select: V-1, V-2, V-3, C-1, C-2, C-3
  Reverb	Newly modeled Spring and Hall reverbs
  Overdrive	Classic, Rock
  Rotary simulation type	Classic, Rock with Direct option, Memphis mode

  INTERFACE

  Controls	- Upper Front Panel: Volume; Reverb; Drive; Keyclick; Tuning; Crosstalk; Rotary; Transpose; Upper preset (1/2); Drawbars set (A/B/MUTE) - Lower Front Panel: Tone controls; Pedal Sustain, Percussion Decay; Percussion Volume; Pedals to lower; Lower presets (1/2); Drawbars set; (A/B/MUTE); Rotary speed control.
  Drawbars - Upper	2 sets of nine drawbars: 16' - 5 1/3' - 8' - 4' - 2 2/3' - 2' - 1 3/5' - 1 1/3' - 1'
  Drawbars - Lower	2 sets of nine drawbars: 16' - 5 1/3' - 8' - 4' - 2 2/3' - 2' - 1 3/5' - 1 1/3' - 1'
  Drawbars - Upper Preset	Upper Drawbar Set A or Set B + 2 presets and Upper MIDI Local on/off
  Drawbars - Lower Preset	Lower Drawbar Set A or Set B + 2 presets and Lower MIDI Local on/off
  Drawbars - Pedals	2 drawbars: 16' & 8'
  Midi In, Out, Thru	Out 1, Out 2, In, Thru, Pedalboard In
  Connections	OUTPUT: L & R Line Out 6.35 mm jacks; Pedals Direct Out 6,35 mm jack (without C/V and Rotary emulation); 11 pin Rotary Speaker (without Rotary emulation); 2 Stereo headphone 6,35 mm jacks; TRS Digital Expression Pedal 6,35 mm jack; Rotary emulation Footswitch 6,35 mm jack; USB to HOST; USB HOST type A (Power charger only); FX send. INPUT: Audio input mono with adjusting gain pot; FX return

  OTHER

  Optional Pedalboard 18 notes; Expression Pedal; Bench; Stand; Softbag
  Colors and Finishes Satin black, American Alder Dimensions(WxHxD) 101 x 18 x 59 cm / 40.16' x 7.4' x 23,2' Weight 18 kg / 39.68 lbs
